Description
Includes all the features of our standard PunchSim software plus the ability to
– Convert an Amada® G-Code program to a DXF file
– Convert Amada G-code to Single Hits
Verify before punching
- Manually write or modify an existing G-code file
- User defined machine properties
- Supports most tooling: Round, Square, Rectangle, SingleD, DoubleD, Obround, Special
- Automatic G-code help while typing
- New punch time estimation report
- Basic G-code error checking
Need to reverse engineer an existing Amada G-Code program?

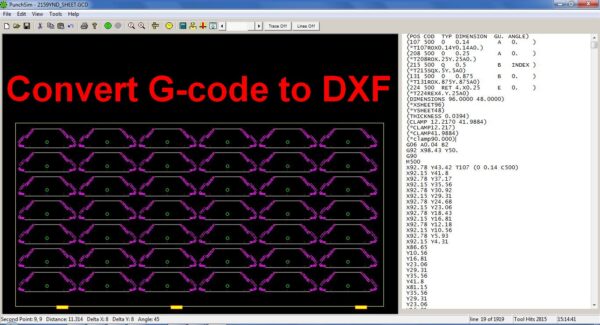

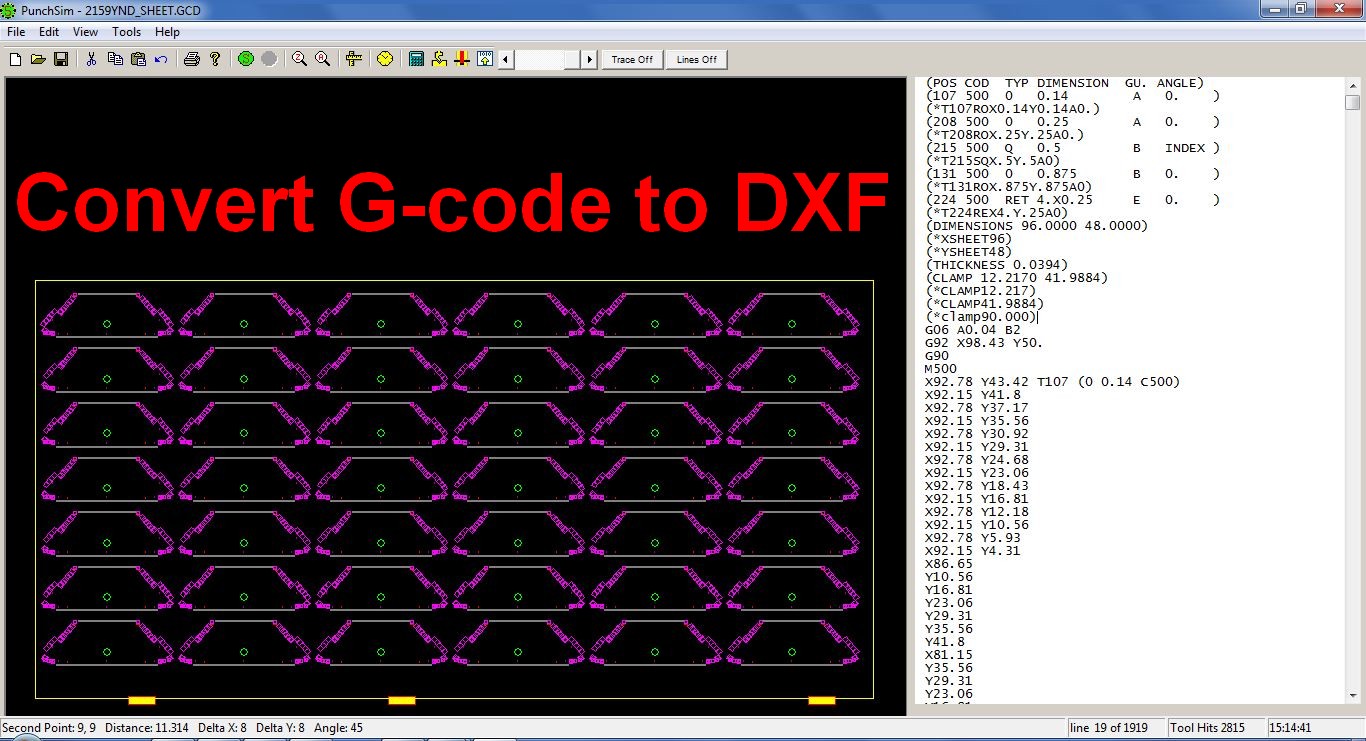

With PunchSimPlus you can export your Amada® G-code simulation to a DXF file which is compatible with any CAD software
Want to covert an Amada® G-Code program to single hits?
PunchSimPlus lets you convert an Amada® G-code language program to simple X Y single hits
- Variable simulation speed
- Zooming functions
- DNC function to send files to machine by com port (RS-232)
- Total tool hit count during simulation
- Includes an Expression Calculator, Bend Deduction Calculator, and Punch Force Calculator
- Measure between tool hits in simulation
- Easily identify tool hits produced by a G-code line
- Supports most standard Amada® G-codes
- Supports Inch or Metric G-code, and so much more…
PunchSimPlus is specifically designed for Amada® punch G-code
*Compatible with Windows 7/8/10/11
